1.7'' LED Half Round
Chrome Plated Step Light
LED Courtesy Light
Warm White
|
 |

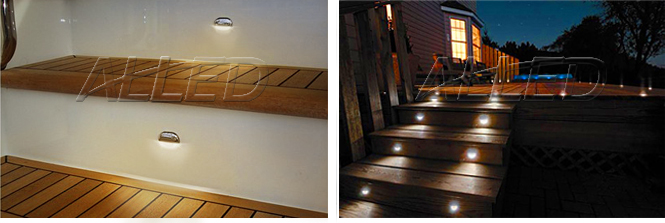

ALLED introduces this 1.7" Half Round Step Chrome LED Courtesy Light for your interior and exterior applications as courtesy light, step light, accent light, garden light, toe kicks, storage areas, companion ways, deck fittings, signs and switches. The engineered lens optics directs light downward to avoid the light from shining into the eyes. Circuit board completely sealed in epoxy to resist water, corrosion and vibration. Suface mount Step Lights are typically used to light your outdoor staircases or walkways.
|
|
|
 |
|
 |
| |
• 3 High quality LEDs
• Lighting color: warm white
• Operating voltage: 12V DC, tested to 13.8V
• Low power consumption: 0.2W, 0.018A
• chrome plate housing
• Clear PC lens, plastic cover in Chrome Plated
• Waterproof rating: IP66

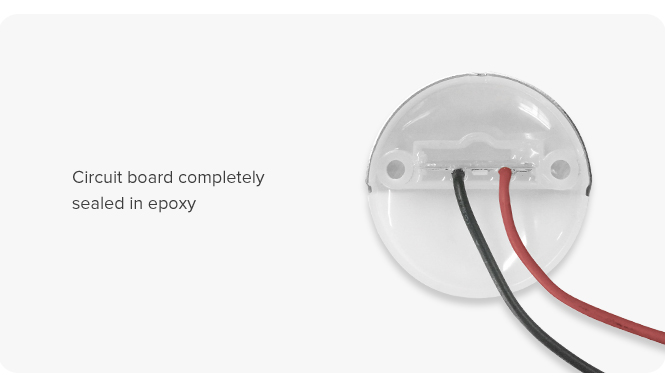

• Circuit board completely sealed in epoxy to resist water, corrosion and vibration
• Extremely Lightweight
• Twin core lead wire tail
• Long life span reaches 100,000hrs
• Easy installation & use: Surface mounted
• Weight: 15g

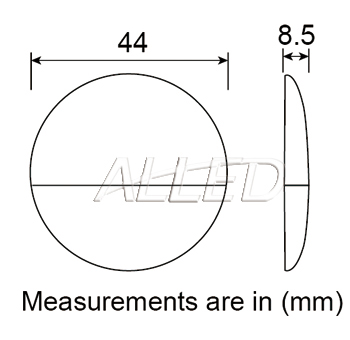

• Diameter: 44mm, two screw holes distance: between 29-32mm
|
 |
|
| |
 |
|
|
 |
 |
 |
| Part No. |
Lighting colour |
Cover |
Volts |
Watts |
mA |
LED NO. |
Waterproof |
| AL11501W |
Warm White |
Silver |
12V DC |
0.2 |
18 |
3 |
IP66 |
| AL11501C |
Cool White |
Silver |
12V DC |
0.27 |
20 |
3 |
IP66 |
| AL11501B |
Blue |
Silver |
12V DC |
0.24 |
20 |
3 |
IP66 |
|
 |
One piece of LED Courtesy Light
Stainless steel mounting screws |
|
